Redodo 12V 100Ah Battery
12V 100Ah Trolling Motor Battery
LiFePO4 Trolling Motor Battery
LiFePO4 Low Temp Cutoff Battery
12V 100Ah Lithium Battery

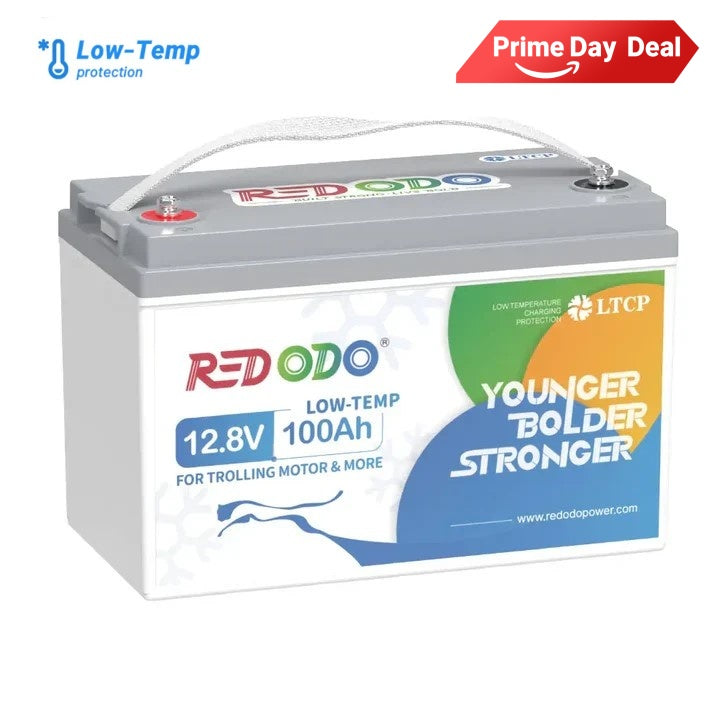

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery With Low Temp Protection

C$349.99 C$479.99
【Best Trolling Motor Battery】Redodo's upgraded 12V 100Ah battery features low-temp charging cutoff protection and advanced BMS, providing fast, stable, and safe power for 30-70 lbs trolling motors.

【One Replaces 2 AGM Batteries, Double Runtime, 2/3 Weight Saved】With a usable capacity of 101Ah-105Ah, this battery doubles the runtime of 12V 100Ah AGM batteries and is 40 pounds lighter, enhancing boat speed.

【Low Temperature Protection & Maximum Current 300A within 5S】The BMS cuts off charging below 32°F (0℃) and resumes above 41°F (5℃), protecting the battery. It supports 300A current in 5 seconds and 500A in 1 second, improving maneuverability.

【Upgraded BMS can Withstand Harsh Marine Environments】The BMS includes pre-charge functions and enhanced moisture and salt-spray resistance, ensuring stable performance in all water conditions.

【Grade A Cells & 8X Longer Battery Life】Made with Grade A cells, the Redodo battery supports over 4000 deep cycles at 100% DOD and lasts up to 10 years, outlasting AGM batteries by 3 times in life and 8 times in cycles.

【Maximum Expansion up to 20.48kWh】The 12V 100Ah battery can expand to a 48V (51.2V) 400Ah pack, offering 20.48kWh for RVs, solar systems, off-grid, camping, and backup power.

【5 Years Warranty & 24 Hours One-on-One Service】Redodo provides a 5-year warranty and 24-hour support. Contact us for any energy system inquiries; we're here to help.

*Please note, this battery is NOT suitable for use as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, elevator lifts, pool vacuums, or mowers.
Pack: 1 pack
1 pack
2 pack
3 pack
4 pack
  • Order today, expected to be delivered onOct 19 - Oct 23

  • Free shipping, tax (vary by region) will be calculated at checkout

Batteries That Impress Users from All Walks of Life

I purchased the group 31 100ah battery for my trolling motor. So far I’ve had it out 4 times in the March wind and it’s done more than perfect! I liked it so much I went ahead and got a 50AH to run my boat electronics.


—— Bryan

Added two 100 amp hour batteries and 400 watts of solar to my RV.  So far, the batteries are performing perfectly.  Lightweight and easy to install inside the bench seat of our dinette.

——Jeff

Unlock Boundless Performance, Meet Your Best Lithium Trolling Motor Battery

With up to 200% longer runtime and less than 40% of the weight of AGM batteries, Redodo lithium deep cycle marine battery allow you to enjoy more time on the water without worrying about running out of power. Our upgraded BMS empowers motors with higher load capacity and corrosion resistance, ensuring unshakeable reliability even in the toughest waters.

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Extend Your Fishing Adventures —— Longer Runtime Keeps You on the Water for as long as You Want

When using traditional lead-acid batteries, if you're out trolling on the lake all day, you may notice a significant decrease in charge, and your  trolling motor become slower and harder to run. However, with the Redodo lithium marine batteries, your motor won't encounter any trouble. With a usage rate reaching 100%, it maintains a consistent high speed from 100% to 0%, keeping your trolling motor in optimal condition at all times and allowing you to stay on the water longer.

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Only 1/3 Weight of the Same Model AGM Battery

The weight reduction will be a major advantage for the boat, this enables the boat to maneuver more nimbly on the water, reaching higher speeds, and enhancing the overall smoothness and comfort of the ride. Additionally, it helps reduce the shaking and bumping sensation caused by waves or uneven lake surfaces.

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

5x Faster Charging Speed than Traditional Lead-acid Batteries!

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Provide Stable Power for Different Types of Trolling Motors

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Upgraded BMS Unleashes Superior Performance
Increased Load Capacity, Enhanced Corrosion Resistance!

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery
Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Battery Lifespan Exceeds Your Expectations and Provides Years of Reliable Performance

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Embrace Energy Independence
Expandable Home Off-Grid System, up to 20.48kWh Capacity

Redodo 12V 100Ah LiFePO4 Trolling Motor Battery
Redodo 12V 100Ah LiFePO4 Trolling Motor Battery

Highly Recommended After Professional Testing

Capacity test>104Ah

Temperature charge cutoff function works properly

Capacity test>105Ah

The continuous discharge current of 100A passed the test

SPECS

BATTERY
Cell Type:
Prismatic LiFePO4 Battery
Warranty:
5 years
Cycle Life:
4000 times (25°C,0.2C,100% DOD)
Nominal Voltage:
12.8V
Rated Capacity:
100Ah
Energy:
1280Wh
Max. Expansion (Parallel & Series):
4P4S
Internal Resistance:
≤40mΩ
BMS
BMS:
100A
Max. Continuous Output Power:
1280W
Max. Continuous Charge Current:
100A
Max. Continuous Discharge Current:
100A
Max. Discharge Current 5 Seconds:
300A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4士0.2V
Recommend Charge Current:
20A (0.2C)
TEMPERATURE
Charge Temperature:
0℃ to 50℃ / 32°F to 122℉
Discharge Temperature:
-20℃ to 60°C / -4°F to 140°F
Storage Temperature:
-10℃ to 50°C / 14°F to 122°F
Low-Temperature Protection:
YES(<0℃/32℉)
Low-Temperature Charging Protection Auto Recovery:
5°C/41°F(Battery Temperature)
OTHERS
Terminals:
M8 Terminals
Weight Approx.:
22.15 Pounds
Size:
L13*W6.77*H8.43 inch
Housing Material:
ABS (Flame Retardant Plastic)
Protection Class:
IP65

FAQ

Q: How long can a Redodo 12V 100Ah low-temperature battery support a 60A trolling motor?

A:

The amount of time your trolling motor will run depends on the battery's capacity (Ah) and the motor's current draw. You can calculate it using this formula:

Run Time (hours) = Battery Capacity (Ah) / Motor Current Draw (A).

For example, if your trolling motor draws 60A at full throttle and you have a 100Ah battery, the calculation would be: Run Time = 100Ah / 60A = 1.66 hours, which is approximately 1 hour and 39 minutes (Full speed).

Q: Can the Redodo 12V 100Ah low-temp lithium trolling motor battery used on an RV?

A:

Yes, this battery can also be used on the RV as a house battery, it with low-temp cut-off protection which is able to prevent the battery from being charged below 32℉.

Q: What's the difference between the Redodo 12V 100Ah low-temp battery and the mini battery as well as the regular 12V 100Ah battery?

A:

The main differences between the 12V 100Ah low-temp battery between the other 12v 100ah lithium battery are the low-temp protection and the physical dimensions. However, the capacity and power of these batteries are the same.

Q: Can I mount the Redodo 12V 100Ah low-temp battery on its side?

A:

It's recommended to install the battery upright with terminal bolts facing up, but it’s also acceptable to mount it on its side. However, the backside and top sides of the 12V 100Ah marine lithium battery are not allowed to be placed downwards.

Q: Will the Redodo 12V 100Ah low-temp battery cut off the discharging when the temperature drops below 32℉?

A:

No, the low-temp protection function only cuts off battery charging, it won't influence the battery discharging.

Q: What are the differences between Self-Heating and Low-temperature protection batteries?

A:

These two series focus on addressing the charging challenges of LifePO4 lithium batteries in cold weather conditions. The primary distinction between the Low-Temperature series and the Self-Heating series is the inclusion of an automatic Battery Management System (BMS) heating module. The Self-Heating series enables the battery to warm itself up during charging without requiring any user intervention. In contrast, the Low-Temperature Protection series, such as the Redodo 12V 100Ah TM & Redodo 12V 200Ah, automatically halts charging if the temperature falls below 0°C (32°F). To resume charging, you need to take measures to warm the battery, such as moving it to a warmer indoor environment, until it reaches at least 5°C (41°F).

For more information, see the comparison of Redodo Self-Heating vs. Low-Temperature Protection.
