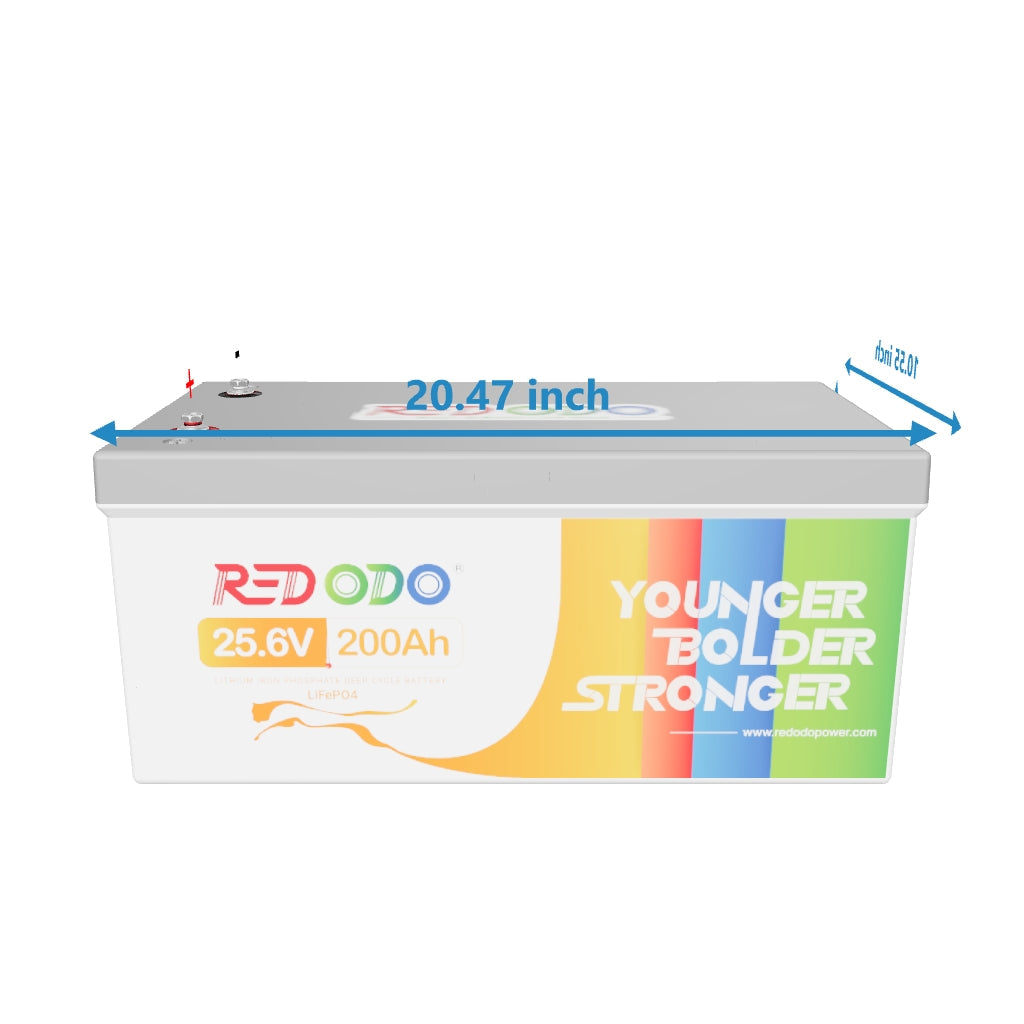

Redodo 24V 200Ah Lithium Battery dimension
Redodo LiFePO4 Battery
 24V 200Ah LiFePO4 Battery
Redodo 24V 200Ah LiFePO4 Battery package

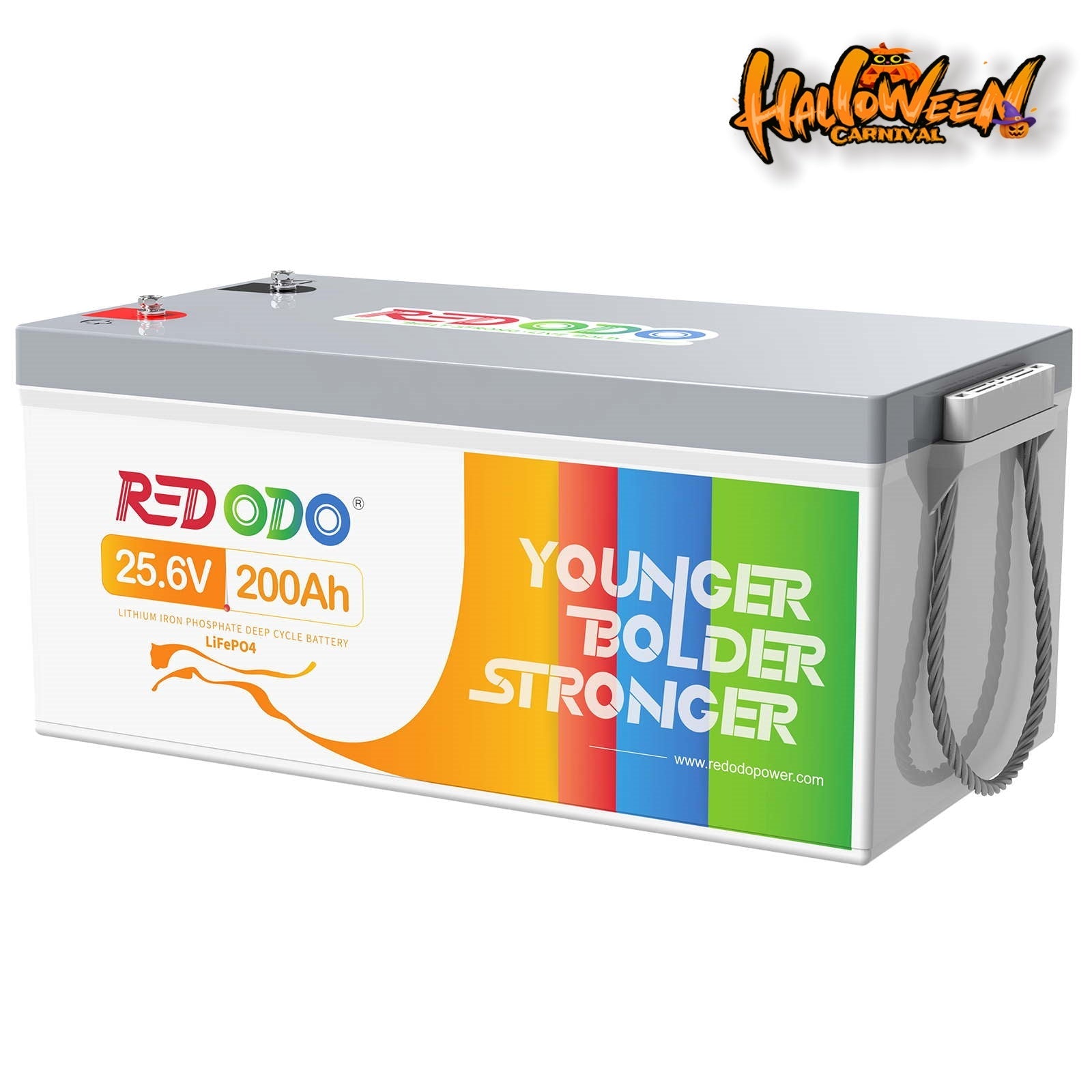

Redodo 24V 200Ah LiFePO4 Lithium Battery

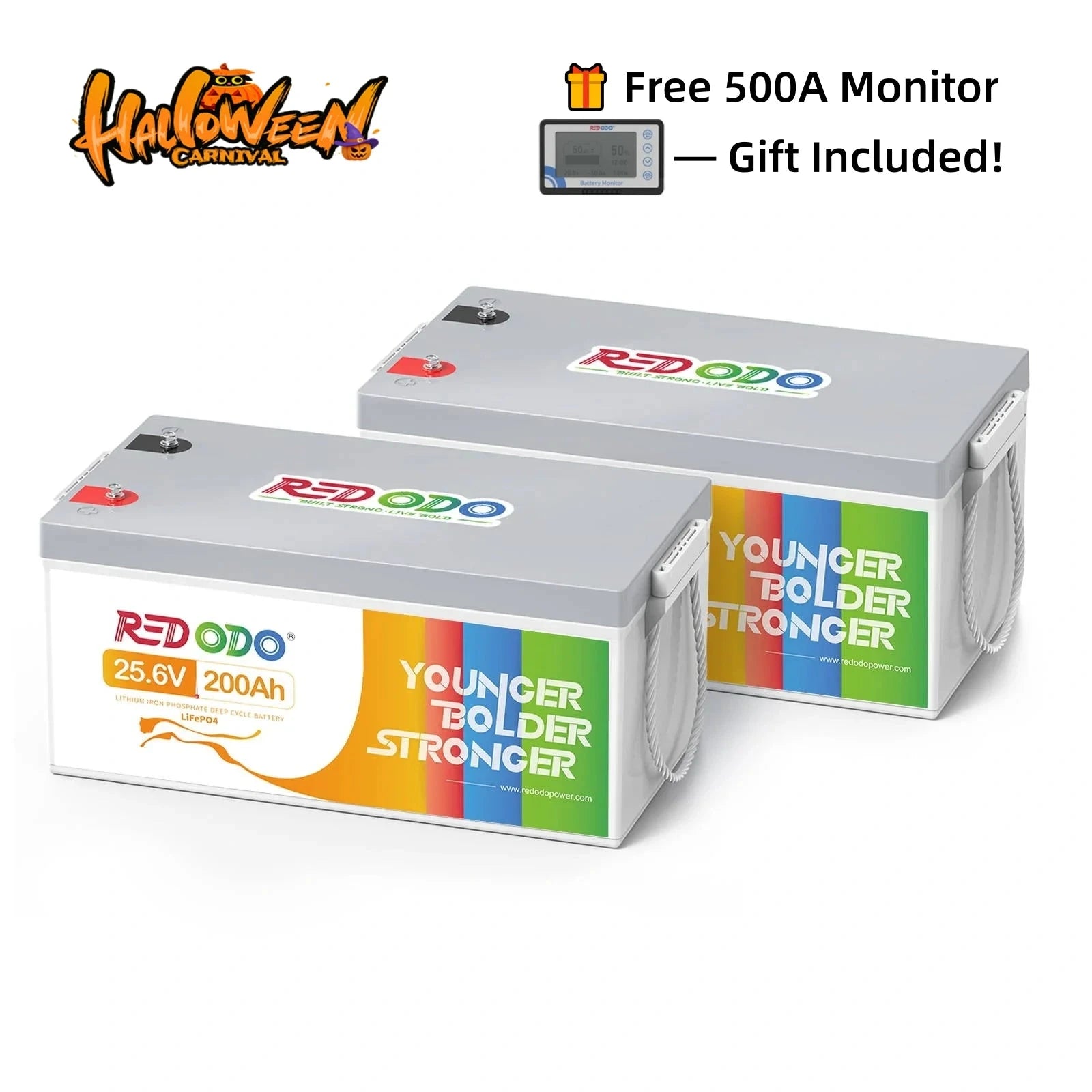

2 pack Redodo 24V 200Ah LiFePO4 Battery
4 pack Redodo 24V 200Ah LiFePO4 Battery

Redodo 24V 200Ah LiFePO4 Lithium Battery | 5120Wh & 5120W Perfect For Solar System, Boats, RV

C$1,199.99 C$2,500.60
Save 52%

📌 Sign up to Get 8% OFF Your First Order, Final Price C$1104

🏆 Certified by UL-1973, CE, FCC, RoHS, UN38.3

5.12kWh Massive Energy, 1=8: Redodo 25.6V 200Ah lithium battery delivers 5.12kWh of energy, equivalent to 8* 12V 100Ah AGM batteries, eliminating messy wiring, energy loss and inefficiency. Power your WiFi router (10W), fridge (50W), and whole-house lighting (300W) simultaneously for 14+ hours on a single charge.

5120W Stable Power with 24V System: Engineered with 200A BMS, this 24V 200Ah lithium battery provides 5120W of stable power, effortlessly running high-demand appliances like electric ovens (1,500W) and dryers (1,200W) at the same time for true off-grid freedom.

2X Energy, 3X Lifespan- Unbeatable Value: The lead-acid 24V 200Ah system (4 *12V 100Ah agm batteries) costs $600+ every 3 years to replace. The Redodo 24V 200Ah battery lasts up to 10 years, pays for itself in just 5 years, and delivers TWICE the usable energy- maximizing your investment.

Group 8D Size, 69% Space Saved: Compact yet powerful: at 20.47×10.55×8.66 inches and 82.67 lbs, the Redodo 24V 200Ah battery replaces 8 bulky 12V 100Ah AGM batteries, saving 69% space while delivering the same energy.

Effortless Expansion & Rapid Charging: Upgrade to 48V in minutes by connecting just 2* 24V 200Ah batteries- no complex wiring of 8* 12V 100Ah batteries required. Scale up to 8 units (4P2S) for a 48V 800Ah system which delivers 40.96kWh, perfect for RVs, marine, off-grid solar and backup power. Support fast charge in 1 hours (200A) or standard 5-hour charge (40A) for optimal battery life.

All-round Protection & Certified Guaranteed: Equipped with smart BMS, the 24V 200Ah battery safeguards against over-charging, over-discharging, high-temp, over-current, and short circuits. UL-1973 tested and certified by FCC/CE/RoHS/UN38.3 for guaranteed safety.

5 Years Warranty & What You Get: Redodo provides 2-5 working days delivery time with local warehouses, 5-year warranty, 24 hours one on one customer service, and lifetime technical support. The package will include a quick start guide, a product manual, 4 terminals posts and 2 isolation caps.

More

  • Canada Local Shipping, expected to be delivered onSep 01 - Sep 05

Pack: 1 Pack (Save 6% Off)
1 Pack (Save 6% Off)
2 Pack (Save 8% Off)
4 Pack (C$1175.99/Each)
Only 4 item(s) left in stock!

Secure payment method

  • PayPal
  • Apple
  • Google
  • MasterCard
  • UnionPay
  • VISA
  • AMEX
  • JCB
  • DinersClub
  • Discover
  • ShopPay
  • Certified by  UL-1973, CE, FCC, ROHS, UN38.3
  • 30-day Hassle Free Return Policy
  • 5-year Hassle Free Warranty
  • Lifetime Customer Support
  • FEATURES

  • SPECS

  • FAQ

  • REVIEWS

Redodo Delivers Every Purchase With Care And Trusted Quality

Redodo CA Lithium battery

Redodo's Batteries Win Over Users Across the Board

After doing my research on most of the large 24volt lithium batteries, I found Redodo to be superb.

—— Bruce

Only used one time with trolling motor and used 8 hours and still has 99% power!!

—— Wallace

Redodo 24V 200Ah LiFePO4 Lithium Battery
Redodo 24V 200Ah LiFePO4 Lithium Battery
Redodo 24V 200Ah LiFePO4 Lithium Battery

Built with Grade A cells and equipped with built-in safety functions

Redodo 24V 200Ah LiFePO4 Lithium Battery

High Quality Battery Cells

The grade A can provide a 10 years service life and over 4000 cycle times.Made with grade A battery cells, Redodo 25.6V200Ah battery can provide a reliable and long lasting power.

Redodo 24V 200Ah LiFePO4 Lithium Battery

Reliable & 100% Safe

With built-in 5 different protection functions: Overcharge Protection, Over Current Protection, Over-discharge Protection, Short Circuit Protection,Built-in High Temp Cut-off.

Expandable & Perfect for the Solar Home System

Supports expansion of up to 4 batteries in parallel and 2 parallel sets in series, allowing for a maximum 40.96kWh solar home or off-grid system. This high capacity enables you to power large loads or multiple devices simultaneously, providing reliable energy for your home and system.

Redodo 24V 200Ah LiFePO4 Lithium Battery

4 Ways Of Recharging The 24V 200Ah Battery

Redodo 24V 200Ah LiFePO4 Lithium Battery
Redodo 24V 200Ah LiFePO4 Lithium Battery

How well is it built and will it pass the capacity test? Let's see!

SPECS

BATTERY
Cell Type:
LiFePO4
Warranty:
5 years
Cycle Life:
4000+ cycles
Nominal Voltage:
25.6V
Rated Capacity:
200Ah
Energy:
5120Wh
Max. Expansion (Parallel & Series):
4P2S
Internal Resistance:
≤40mΩ
Certifications:
UL1973,CE, FCC, RoHS, UN38.3
BMS
BMS:
200A
Max. Continuous Output Power:
5120W
Max. Continuous Charge Current:
200A
Max. Continuous Discharge Current:
200A
Max. Discharge Current 5 Seconds:
400A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
28.8±0.4V
Recommend Charge Current:
40A (0.2C)
TEMPERATURE
Charge Temperature:
0℃ to 50℃ / 32℉ to 122 ℉
Discharge Temperature:
-20℃ to 60℃ / -4℉ to 140 ℉
Storage Temperature:
-10℃ to 50℃ / 14℉ to 122 ℉
OTHERS
Weight Approx.:
82.01 Pounds
Size:
20.47*10.59*8.66 inches
Housing Material:
ABS
Protection Class:
IP65

FAQ

Q: Can l use Redodo LiFeP04 Lithium batteries as starting batteries?

A:

The Redodo LiFePO4 lithium batteries are not intended to be used as starting batteries. They are designed for energy storage applications, not for starting devices. Please do not use these batteries to start any devices, as that is not their intended purpose.

Q: Can l charge Redodo LiFePO4 lithium batteries with solar panels?

A:

Yes, you can charge Redodo LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge:
1. Using Solar Panels
The Redodo 24V 200Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 1200W solar panels. It may take more than one day to fully charge the battery by ≥1200W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 24V battery, it is recommended to use 29.2V battery charger.
The Recommended Charging Voltage: 28.4V - 29.2V.
The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Q: What does a group 8D battery mean?

A:

The group 8D battery is one of the largest batteries available to use. The group 8D battery dimension is about L21*W11*H10 inch.

Q: ls this 8D battery a deep cycle battery?

A:

Redodo 24V 200Ah LiFePO4 battery is a 8D deep cycle battery, widely used in RVs, marine, home storage and off-grid.

Q: How many Redodo 24V 200Ah lithium Batteries can l connect at most?

A:

The Redodo 24V batteries support a variety of connection configurations. You can connect them in series, parallel, or series-parallel arrangements. In a series configuration, you can connect up to 2 batteries. For a parallel configuration, you can connect up to 4 batteries. The series-parallel configuration allows you to connect up to 8 batteries. These versatile connection options provide flexibility in how you can set up your Redodo 24V battery system.
